PWM

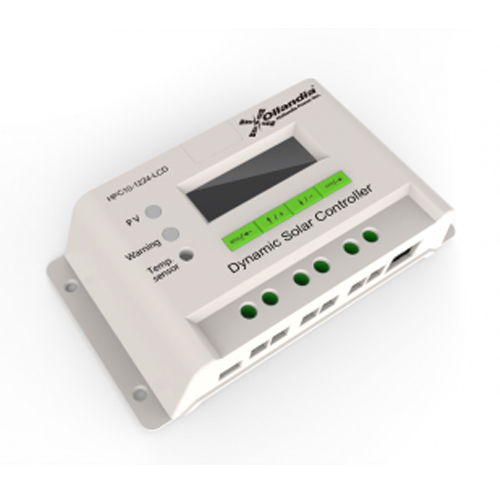

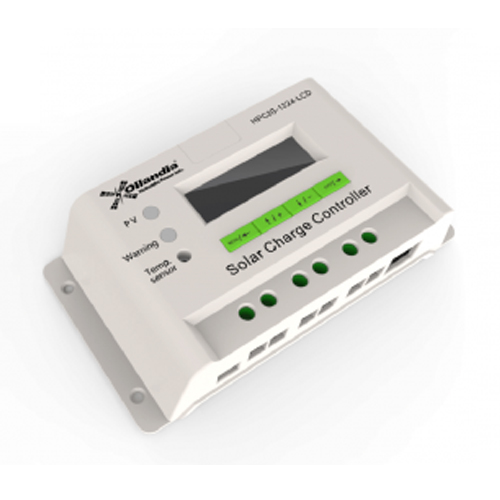

The charge controllers come in the range of 10 Amp - 60 Amp in 12V/24V/48V.

The simplicity and high performance of our solar charge controllers make it particularly appealing. At the same time, it offers a modern design and a convenient display, all at an extremely attractive price.
Several LEDs or even LCD display in various colours emulate a tank display, which gives information on the battery's state of charge. Our charge controllers are equipped with an electronic fuse, thus making optimal protection possible. They operate on the serial principle, and separate the solar module from the battery in order to protect it against overcharging.
For larger projects, the charge controllers can also be equipped with special functions: e.g. with night light function and selectable charging plateau and deep-discharge protection voltages.

Enquire Now

Product Details

Features

  • Current compensated load disconnection
  • Automatic load reconnection
  • Temperature compensation
  • Common positive grounding or negative grounding on one terminal
  • Integrated self test
  • Monthly maintenance charge Overcharge protection
  • Deep discharge protection
  • Reverse polarity protection of load, module and battery
  • Automatic electronic fuse
  • Short circuit protection of load and module
  • Overvoltage protection at module input
  • Open circuit protection without battery
  • Reverse current protection at night
  • Overtemperature and overload protection

Datasheet

Enclosure Dimensions

Specification

  • Rated Current :- 10Ah -60Ah
  • Rated Voltage :-12/24V AUTO
  • Maximum Battery Voltage :- 32V
  • Maximum PV Voltage :- 48V
  • Self Consumption :- 18mA maximum
