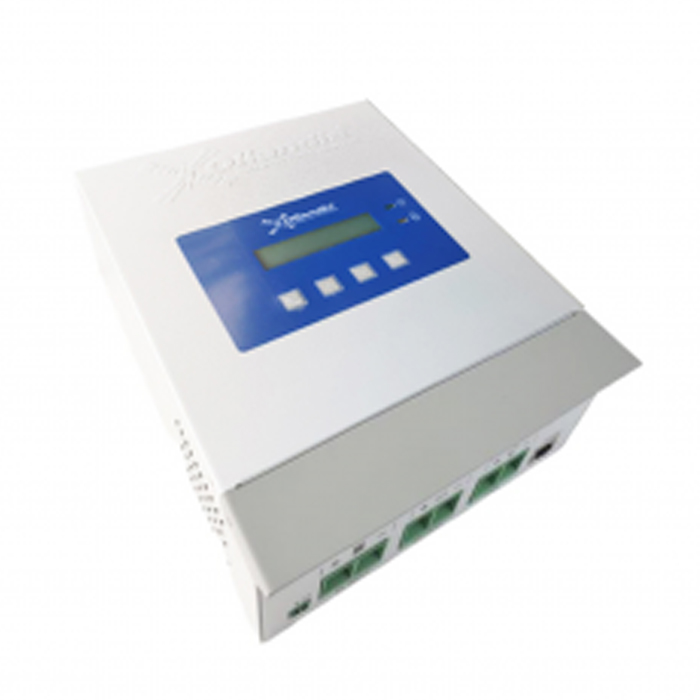

MPPT-Fan Cooled

Maximum Power Point Tracking Controllers extract maximum available power from PV module under certain conditions. Our range of controllers consists of extreme weather condition housing units which have large heat sinks as well as fan cooled controllers for moderate conditions.

The controllers range from 40A up to 120A.

Enquire Now

Product Details

Features

Fan cooled version:

  • Battery low voltage protection
  • Solar overload protection
  • Short circuit protection
  • High voltage protection
  • Automatic error protection
  • Current limit protection
  • Low weight
  • IP65

Enclosure Dimensions

Specification

  • Rated Current : 40A-100A
  • Rated Voltage :12/24/36/48V AUTO
  • Maximum Battery Voltage : 48V
  • Maximum PV Voltage : 150V
  • Self Consumption : ≤ 2W
  • Battery Temperature sensor included
  • Dimension -weight 2Kg-230*180*82
  • Operating System -25- 60°C

Manuals

Material safety datasheet

Software
